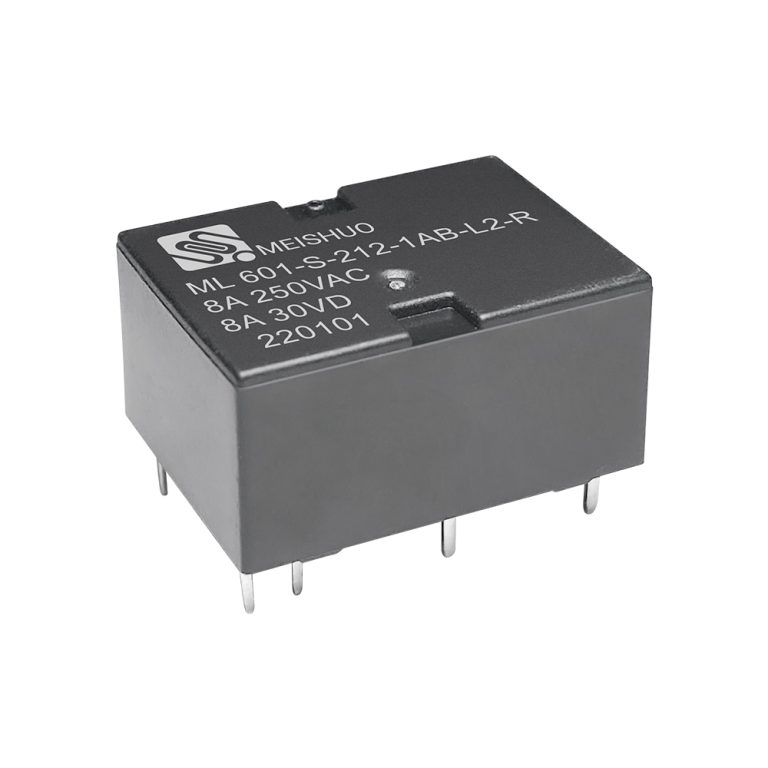

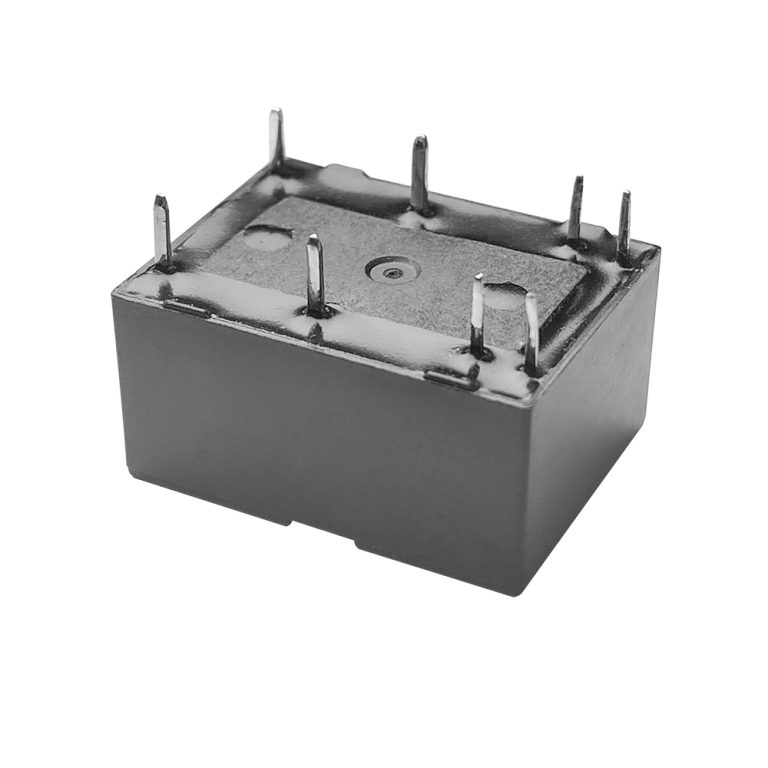

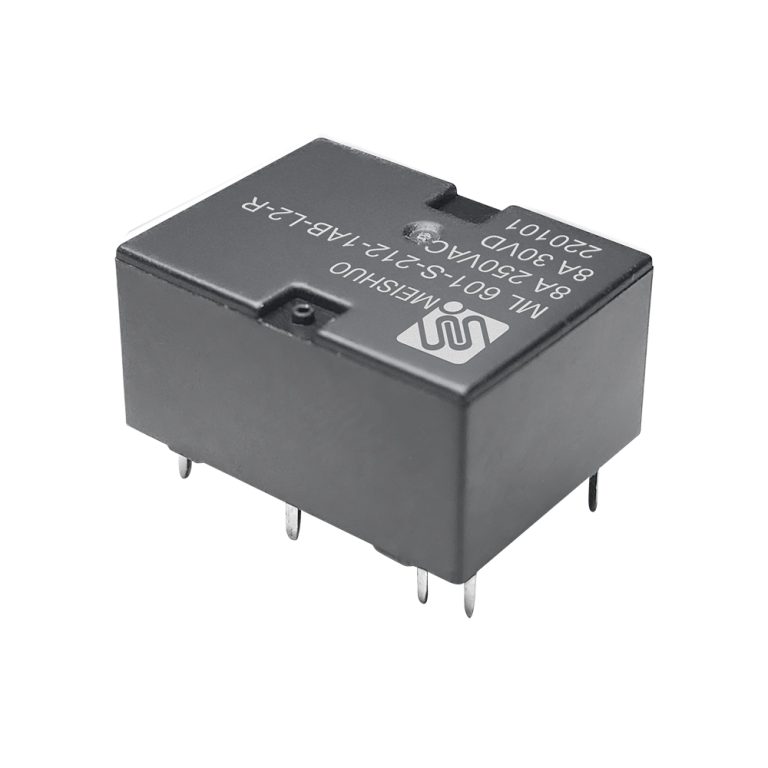

MEISHUO 8pins Multi-Contact Form Relay

Product Overview ML601 relays have high sensitivity, commonly used in home appliances, smart homes, industrial control, signal communication and other systems. It is engineered for reliability, efficiency, and versatility, ensuring seamless integration into a wide range of control systems. Contact Parameters

Contact Form	1a,1b (Bistable type only)	2a,2b,1ab
Contact Material	Silver Alloy
Contact Resistance (Initial)	≤50mΩ (1A 6VDC)
Contact rating (Res.load)	10A 250VAC	8A 250VAC
Max. Switching Current	10A	8A
Max. Switching Voltage	250VAC
Max. Switching Power	2500KV	2000KV
Electrical Life	100000 OPS
Mechanical Life	1000000 OPS

Characteristics

Insulation Resistance	1000MΩ Min. (500VDC)
Dielectric Strength	Between Coil & Contacts: 4000VAC 1min Between Open Contacts: 1000VAC 1min
Operate Time	≤10ms
Release Time	≤10ms
Ambient Temperature	-40℃～+85℃
Vibration	10Hz～55Hz 1.5mm(DA)
Shock	Functional: 98m/s² Destructive: 980m/s²
Termination	PCB
Construction	Wash tight/Flux Proof
Unit Weight	Approx. 6g

Product Advantages Advantage 1: Strong durability: Compared to general electronic components, the service life of relays can reach hundreds of thousands of times or more, ensuring the reliability of switching power supplies. Advantage 2: The relay has a low power consumption, which means that the relay needs less energy when it is used, which can effectively reduce the energy consumption of the switching power supply, and also ensure the reliability of the switching power supply. Company Profile Zhejiang Meishuo Electric Technology Co., Ltd. is a dynamic and innovative enterprise in the field of electrical technology. Our corporate mission is to create value for our customers with a professional spirit. We focus on providing products with relays and solenoid valves as the core, and constantly provide corresponding solutions for our customers. Our industries cover smart homes, new energy, smart grids, automotive industry, and industrial control, striving to meet customer needs and provide customers with more valuable products. Production Workshop Display Cooperation Our customer-centric strategy ensures that we understand and meet the unique needs of our customers, providing them with tailored solutions and excellent services.
