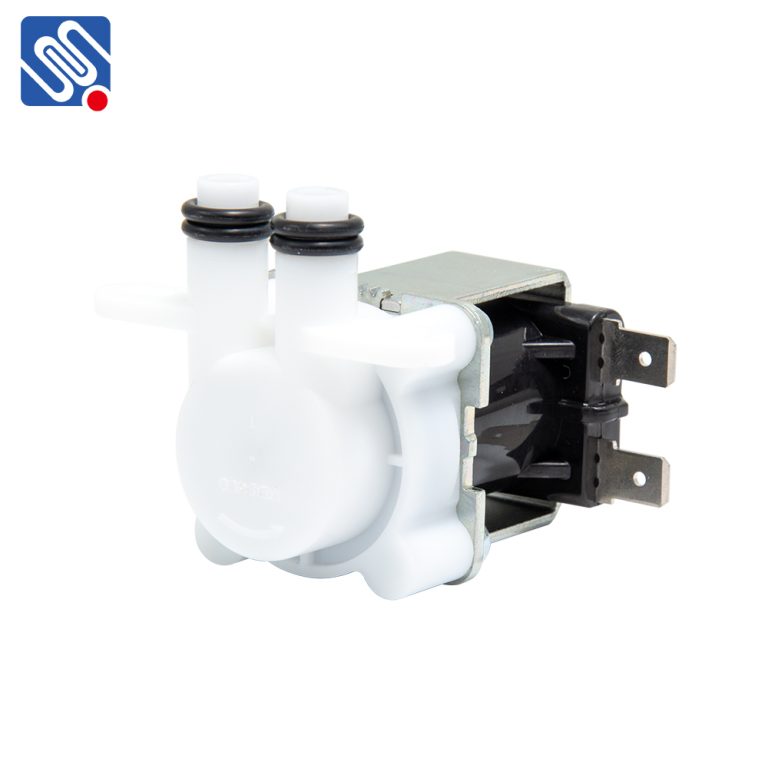

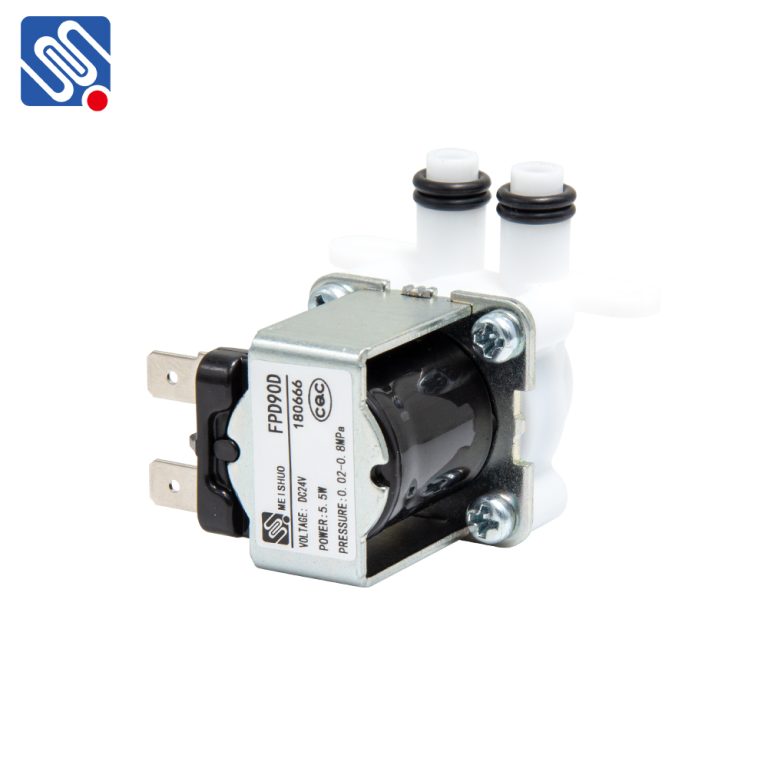

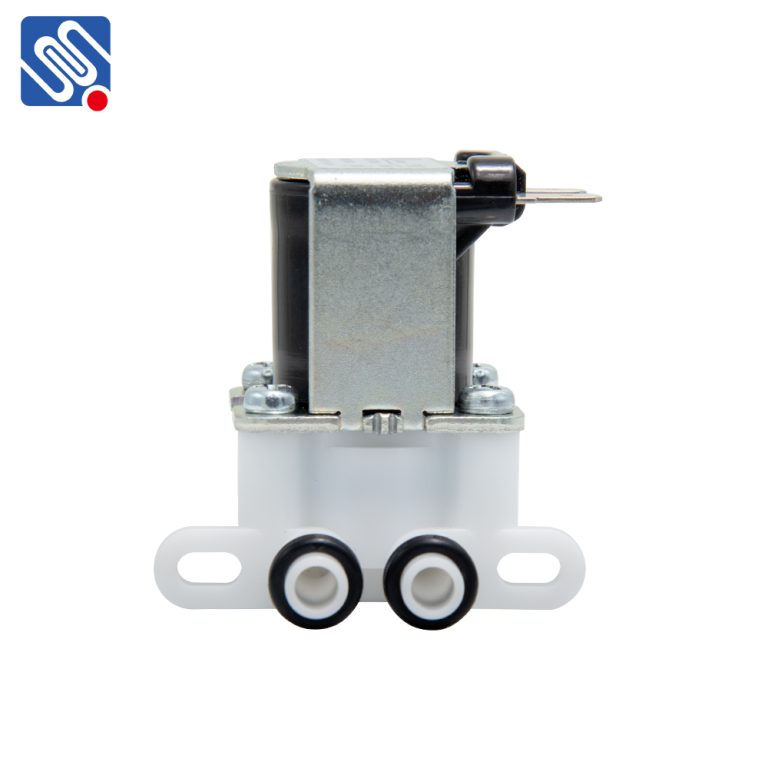

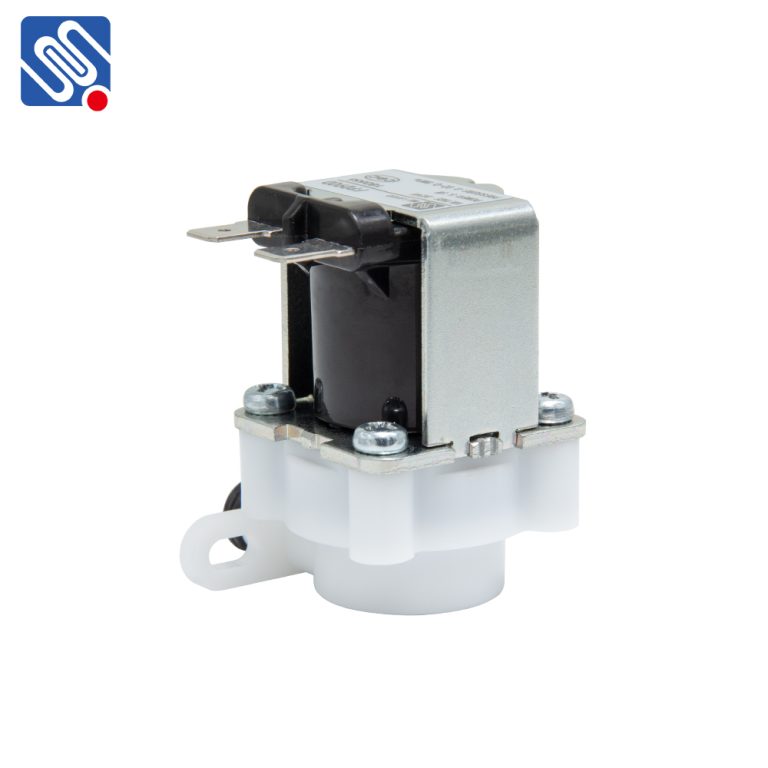

12V DC Inlet Solenoid Valve

Overview: The FPD90D inlet solenoid valve is a normally closed valve . When powered on, the coil generates electromagnetic force, which pushes the iron core to overcome the spring force and move, achieving the opening of the solenoid valve. This solenoid valve is commonly used in water purifiers and water dispensers series.

Product Model:	FPD90D
Rated Voltage:	DC12V 24V 36V AC110V 220V 50/60Hz
Pressure Range:	0.02-0.8MPa
Operate Life:	≥100000 OPS

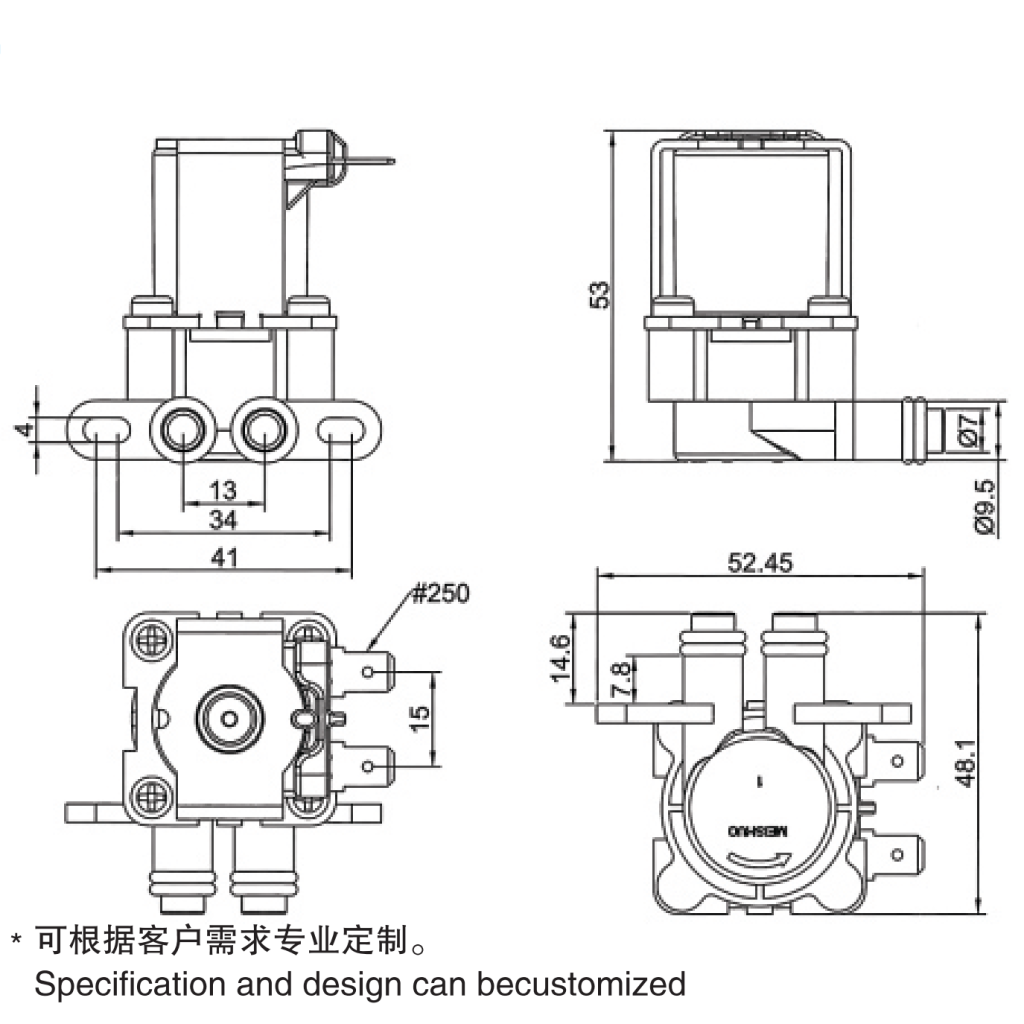

Spacing:	34 – 41mm
Hydraulic Pressure:	0.3MPa
Flow Rate:	＞3L/min

Naming rules Product series: F Inlet and outlet angle: P: Parallel type Outlet number: D: Single Outlet Coil terminal direction: 90: 0°(90°) Product design code: D Our advantages Production System: High standardization of production inspection Clean, constant temperature and humidity production environment control Highly automated production R&D System: High level R&D team Professional R&D equipment Quickly customize research and development according to customer needs Quality Assurance System: Raw materials – production – factory inspection control Certification of UL Witness Laboratory, TUV Witness Laboratory, VDE Witness Laboratory, and CNAS Laboratory Certificate Production workshop display The R&D team is composed of over 100 full-time R&D personnel and continuously absorbs professional talents. 45 fully automated production lines, linear motors, CCD image detection systems, and various high-precision sensors are widely used to ensure the high quality of products. Our customers We have collaborated with clients from over 90 countries worldwide, providing high-quality products and services and receiving positive feedback from them.
