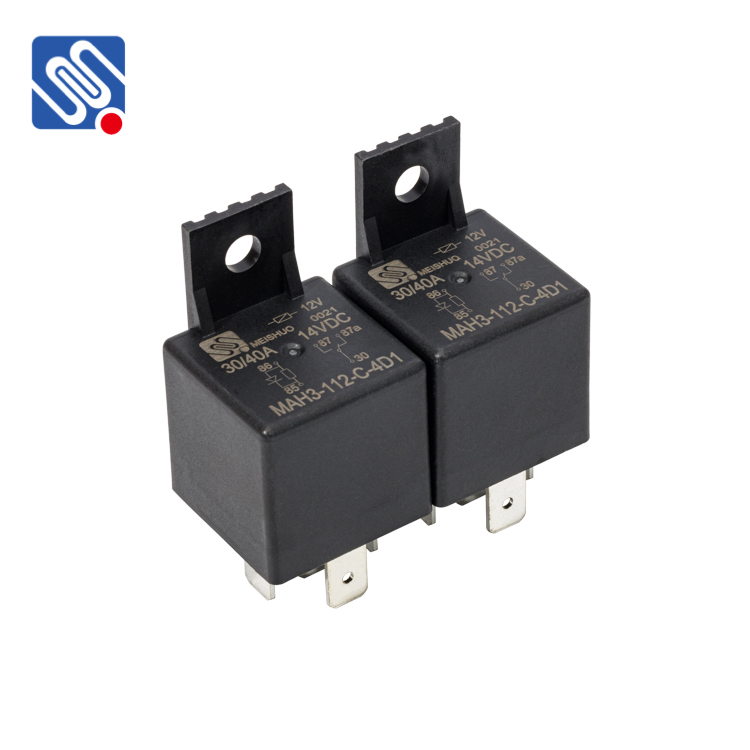

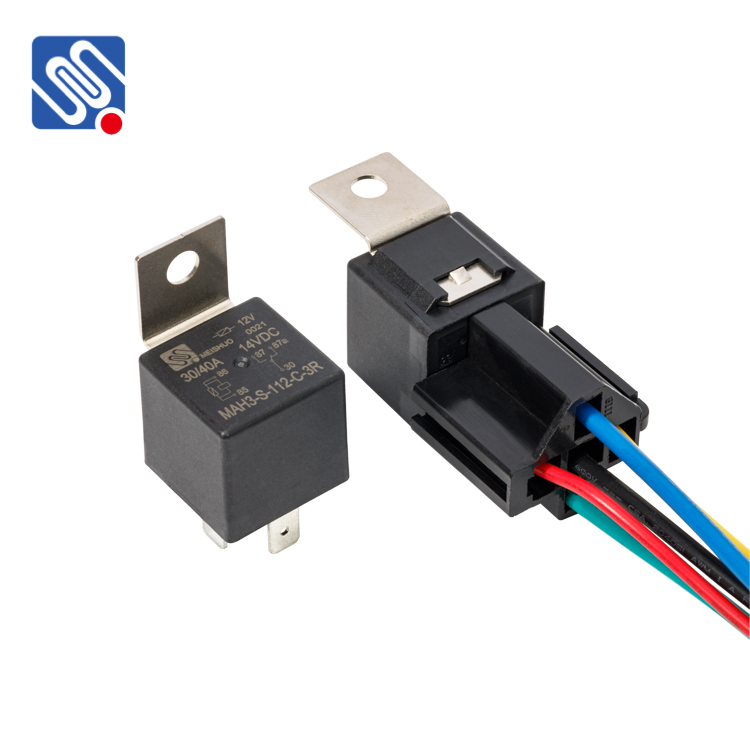

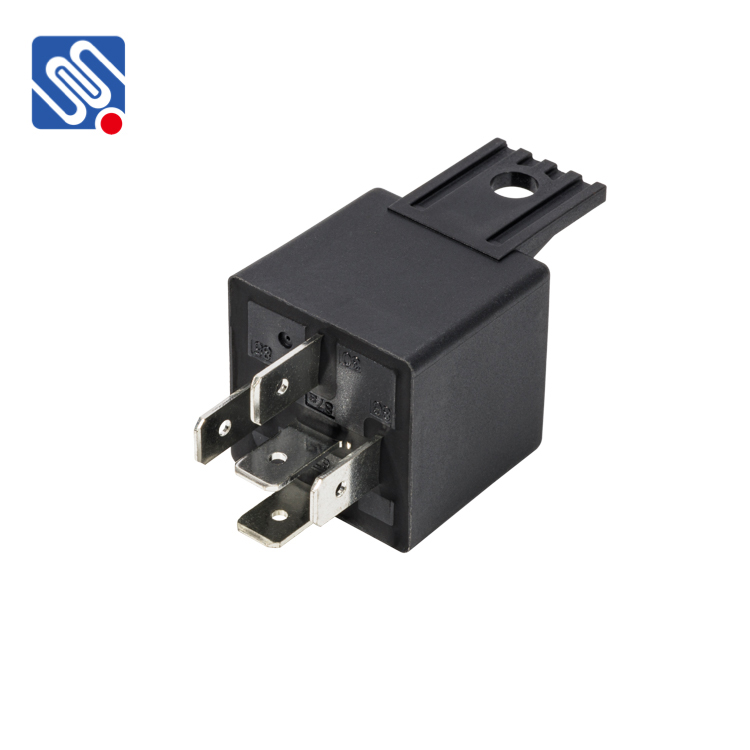

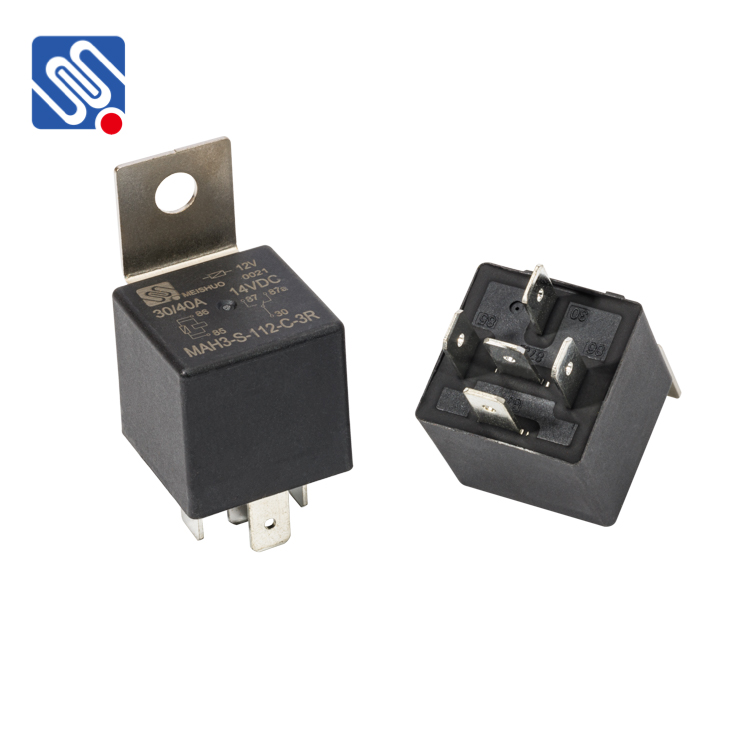

12V 40A 14VDC 60A Automotive Relay JD1912 JD1914
40A, 60A Switching capability
4 kinds of contact arrangement available
Dust protected Type And Sealed Type Available
Outline dimensions L×W×H: 26×26×25mm
Product Overview
The MAH3 automotive relay has a contact switching capability of 40A and 60A. The product has multiple structural configurations to choose from, such as metal backs, PCB layout, light backs, plastic backs, 12V, 24V, etc., and can be matched with wiring harnesses. They can effectively protect car circuits and prevent circuit damage caused by overload or short circuit.
Contact Parameters
Contact Arrangement
1A, 1B, 1C
2A
Contact Material
Silver Alloy
Voltage Drop(Initial)
NO: Type.20mV, Max.250mV
Max. Continuous Current
NO/NC:40A/30A
NO/NC:60A/45A
Max. Switching Voltage
80VDC
Electrical Life
100000 OPS
Mechanical Life
1000000 OPS
Characteristics
Insulation Resistance
100MΩ(500VDC)
Dielectric Strength
Between Coil & Contacts: 500VAC 1min
Between Open Contacts: 500VAC 1min
Operate Time
≤10ms
Release Time
≤10ms
Ambient Temperature
-40℃~+125℃
Vibration
10Hz~500Hz 49m/s²(5G)
Shock
Functional: 98m/s² (10G)
Destructive: 196m/s² (20G)
Terminal Form
QC, PCB
Construction
Dust Protected, Sealed
Unit Weight
Approx.33g
Mechanical Data
Cover Retention:(Pull, Push) 200N
Terminal Retention:(Pull, Push) 100N
Terminal Retention To Bending:(Front, Side) 10N

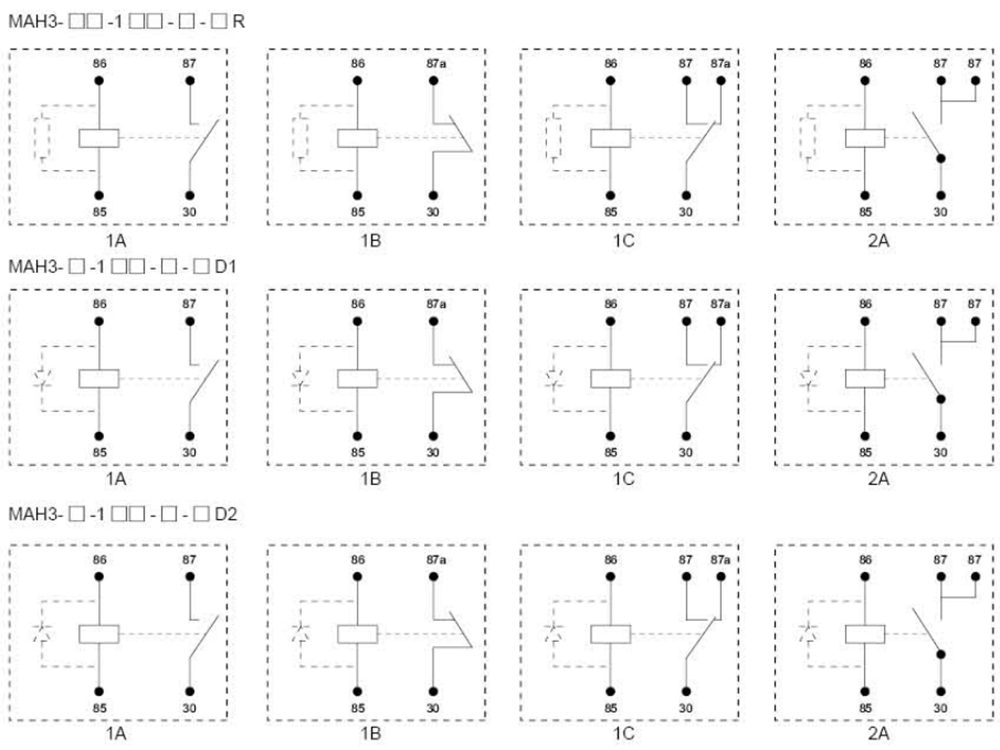

JD1912 JD1914 Relay Wiring Diagram(Bottom View)Product Advantages
Advantage 1:
High reliability: The MAH3 relay has excellent mechanical performance and can maintain normal operation even under strong external impacts, ensuring the stability and reliability of the switching power supply.
Advantage 2:
Safe and reliable: The MAH3 relay can be isolated and protected to avoid circuit failure caused by load failure and improve safety.

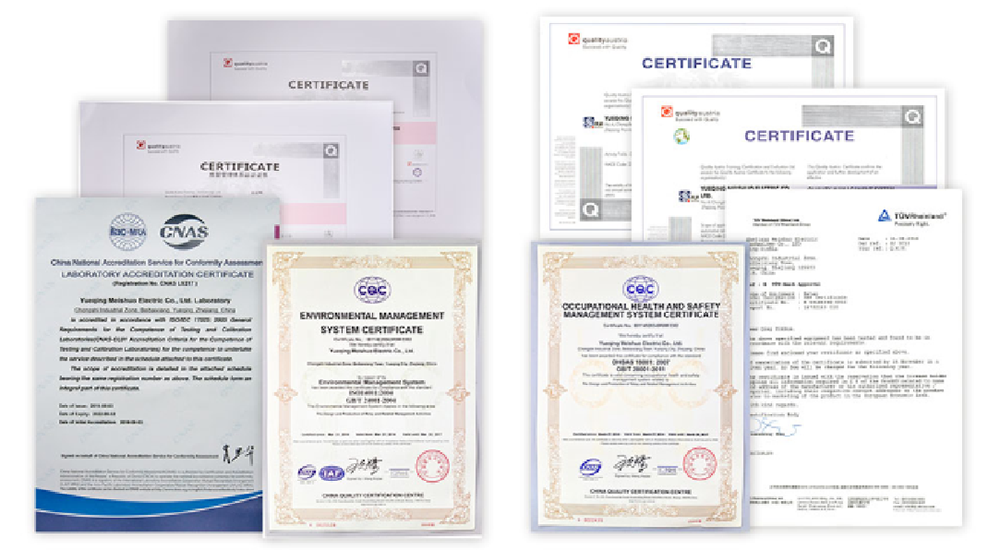

Certificate
Our company has obtained UL, VDE, TUV, CQC, and CE certificates to meet the diverse needs of different customer groups around the world.
Company Profile
Zhejiang Meishuo Electric Technology Co., Ltd. is a high-tech enterprise specializing in the research and development, production, and sales of relay control components and their derivative actuators, fluid solenoid valve products.
The company has a professional R&D team and advanced R&D facilities, dedicated to the development of new products and technological innovation. The company adheres to the corporate philosophy of “innovation, quality, service, and win-win”, and is committed to providing customers with high-quality products and services.

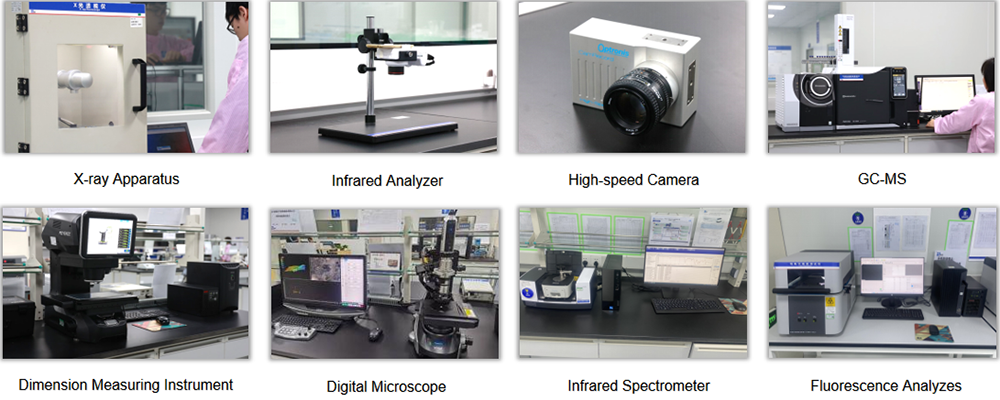

Testing equipment
The company focuses on the research and development of new products, technologies, and equipment, and gradually builds a comprehensive product testing and analysis equipment system in the process. This system covers advanced instruments such as X-ray equipment, GC-MS, size measurement equipment, and digital microscopes, ensuring strict control of product quality in all aspects of production and research and development.

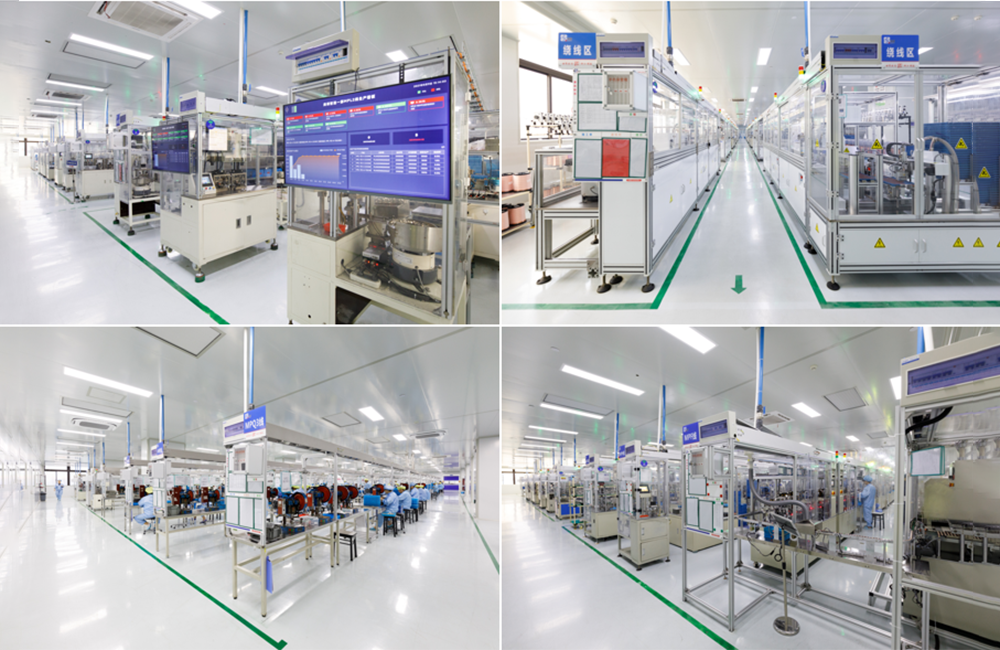

Production Workshop Display
