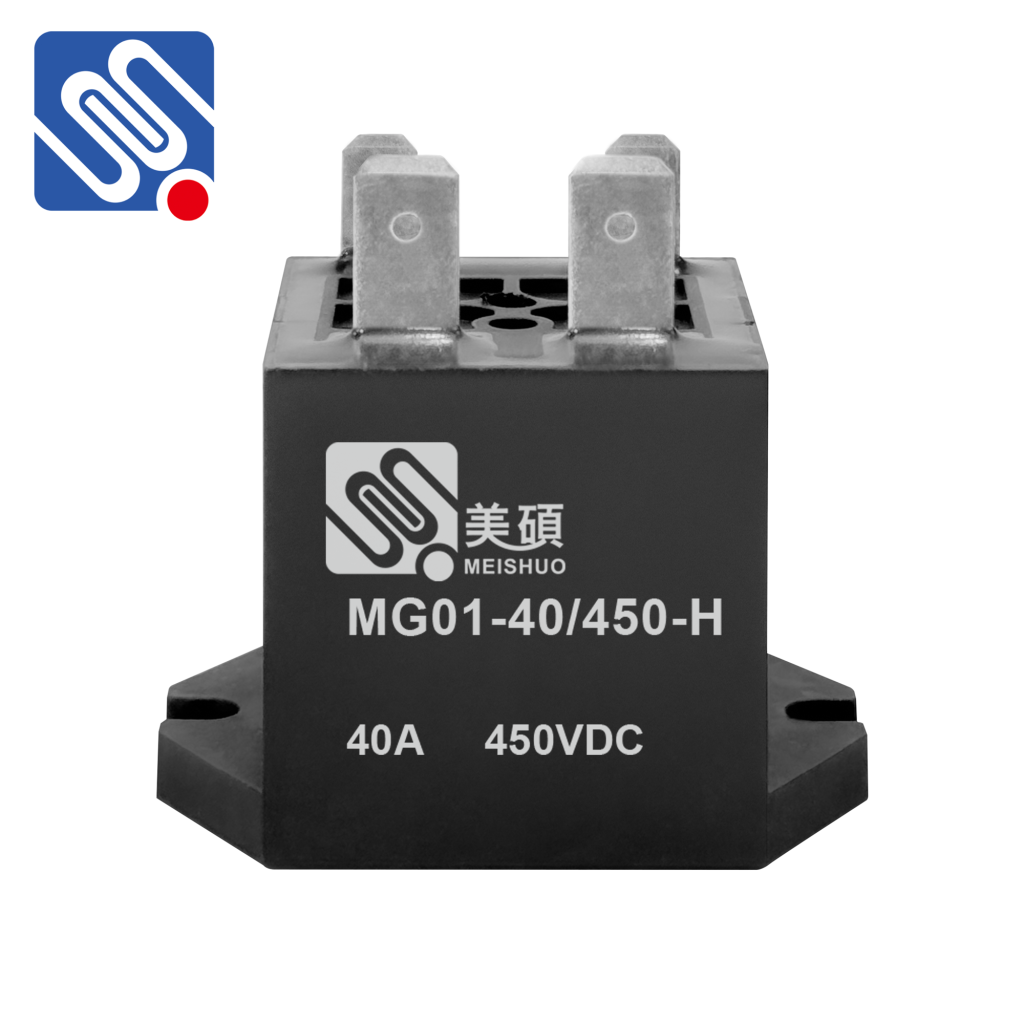

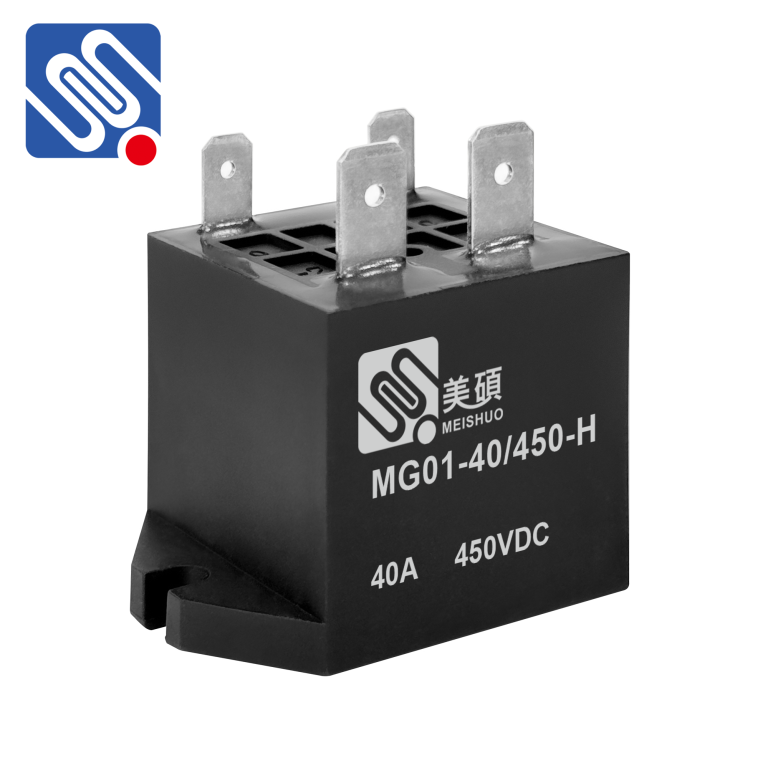

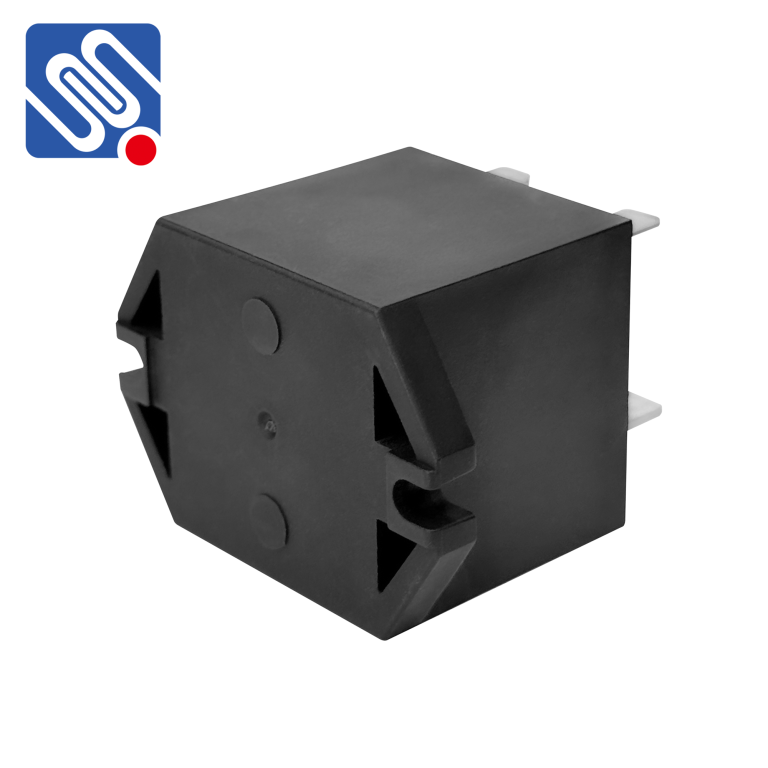

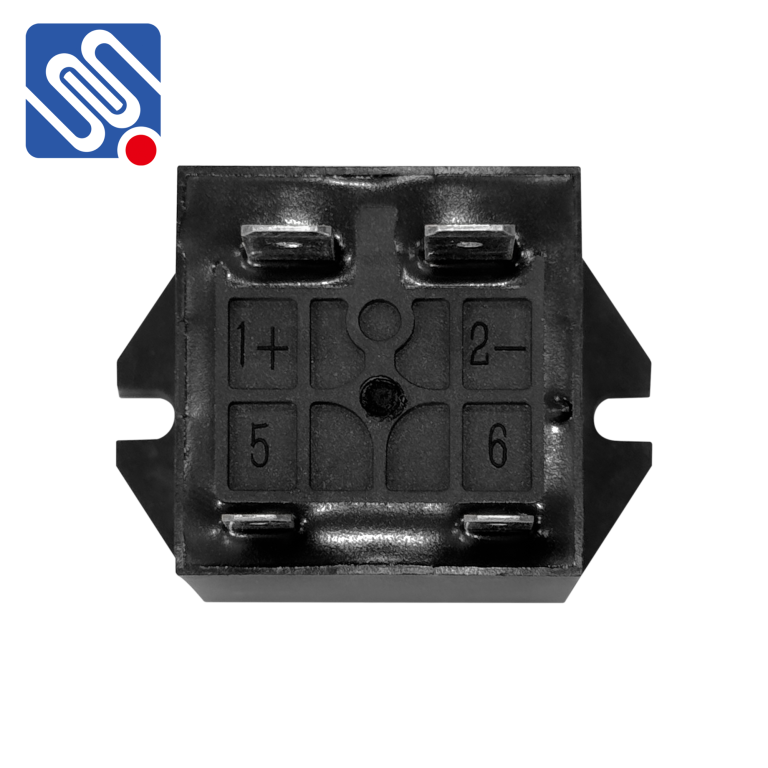

MG01-40/450-H High Voltage 450VDC 40A Relay Miniature Solar Energy System for EV Charging Station High Power
Main contact form: 1H (1 group normally open)
Main contact rated load: 20A/450VDC; 30A/72VDC
Contact resistance: ≤20mΩ (20A/6VDC)
Electrical durability: 20A/450VDC 3000 times ; 30A/72VDC 10000 times
Temperature range: -40°C~85°C
Weight: about 50g
Product Description:
Meishuo MG01-40/450-H 450V 40A Vehicle Parts High Voltage Automotive Magnetic Relay EV
Company Introduction：
The History of Meishuo Company
* In 2007 Meishuo Electric Co., Ltd. was establishing and started
* In 2008, Meishuo Electric cameto the OEM agreement with Hella Group
* In 2009, Meishuo Electric cooperated with Midea Group
* In 2010 , Meishuo Electric cooperated with Steelmate, a leading enterprise of vehicle security systems in China
* In 2013, Meishuo Electric enlarged its scale and expanded its manufactring bases
MEISHUO pays attention to the use of advanced manufacturing technology and production equipment, and has fommed a fully automated production capacity of relays
It is one of the relay manufacturers with the highest automation degree in China.
Over 35 fully automated production lines;
Production capacity of 1.7 million pcs/day,500 million pcs/year,
Independent R&D and manufacturing capability of automation equipment, with a number of invention patents
PRE-SALES SERVICE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
*If you have any problems, we have a group of professional engineers to assist you in any time.
FAQ：
Q1.Can I have sample oder for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How do you proceed order for relay ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
