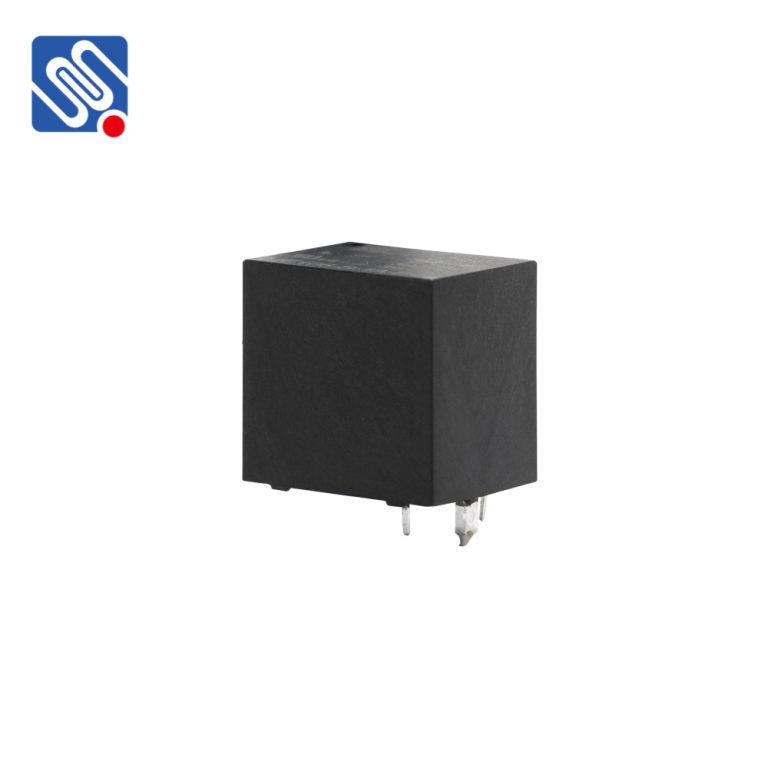

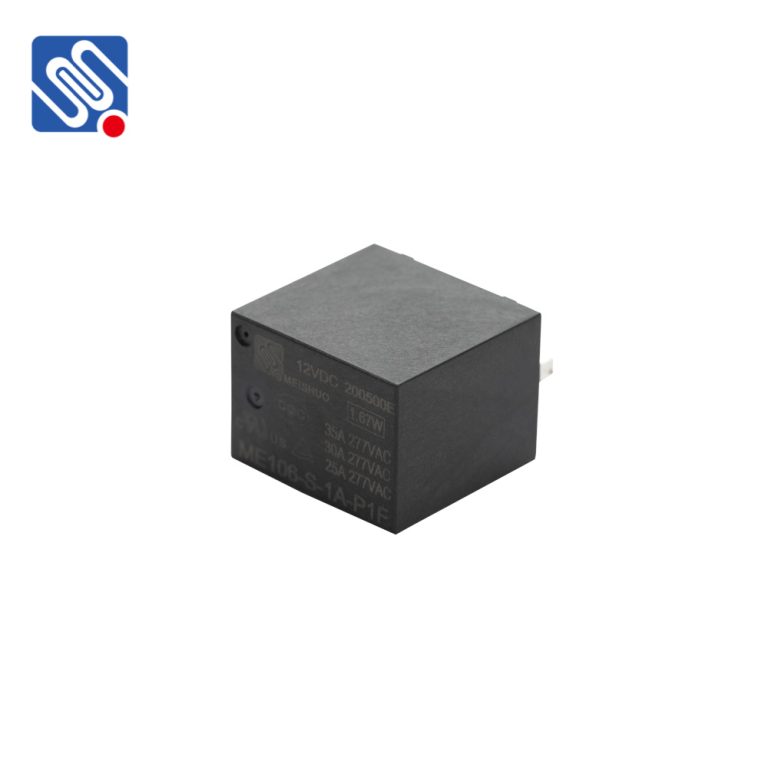

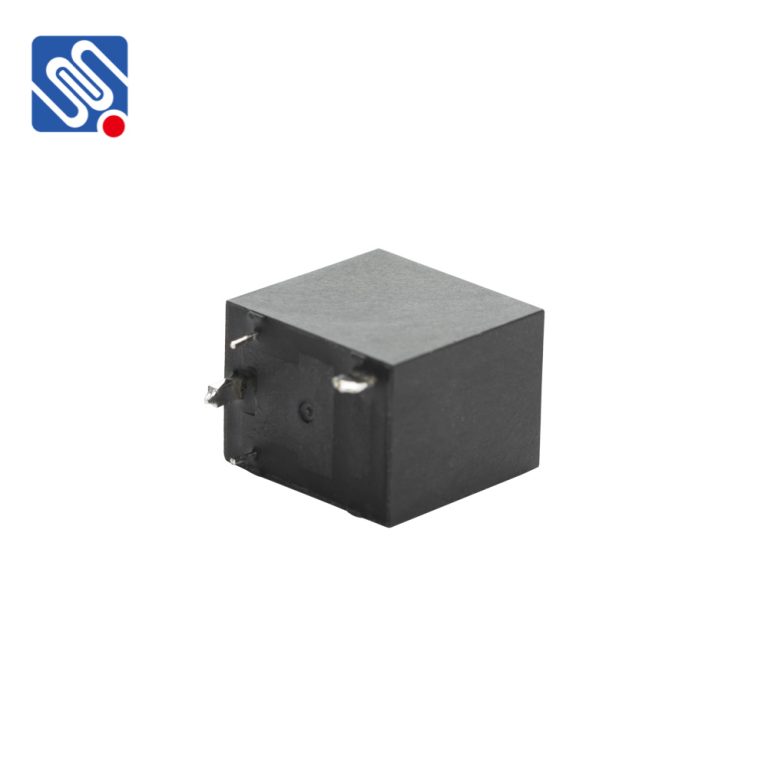

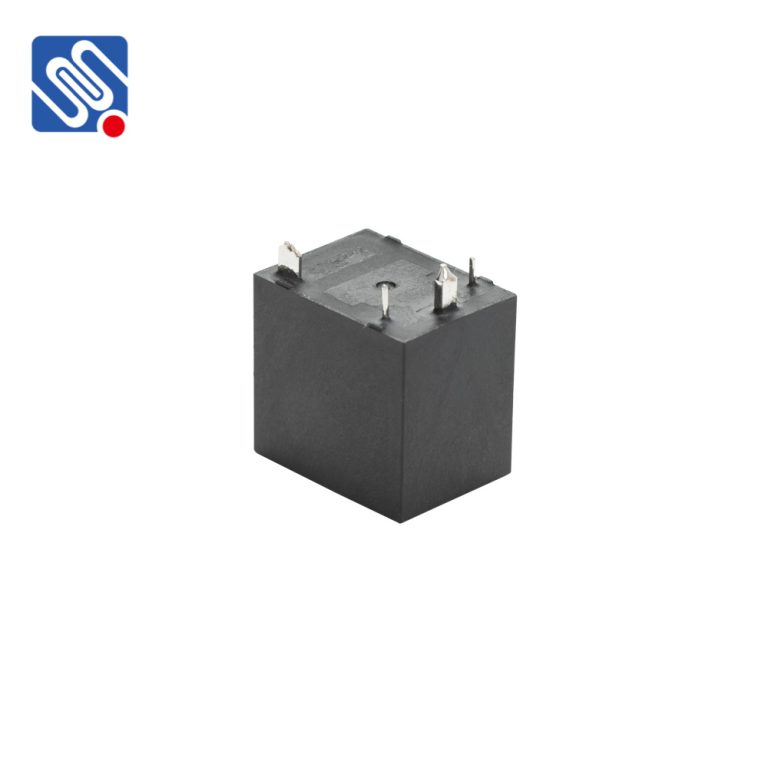

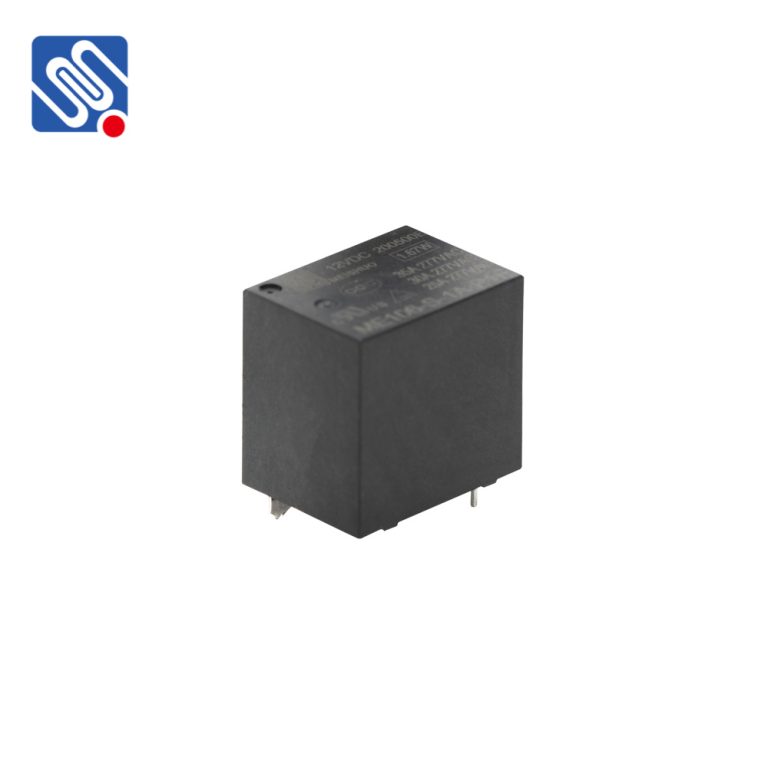

4 Pin 32A Mini New Energy Relay

Product Overview ME106 relay is a commonly used relay in inverters and new energy systems. It has the advantages of high reliability, fast response, strong durability, low power consumption, and easy installation and maintenance. Contact Parameters

Contact Arrangement	1A
Contact Material	Silver Alloy
Contact Resistance	≤100mΩ (1A 6VDC)
Max. Switching Current	32A
Max. Switching Voltage	277VAC
Max. Switching Power	8864VAC
Electrical Life	10000 OPS (NO:32A 277V, Resistive load, 85℃, 1s on 9s off)
Mechanical Life	300000 OPS (Sensitive, standard type) 100000 OPS (High power)

Characteristics

Insulation Resistance	1000MΩ (500VDC)
Dielectric Strength	Between Coil & Contacts: 4000VAC 1min P1 type foot print 2500VAC 1min P2 type foot print
Operate Time	≤15ms
Release Time	≤10ms
Ambient Temperature	-40℃～+105℃
Vibration	10Hz～55Hz 1.5mm(DA)
Shock	Functional: 98m/s² (10G) Destructive: 980m/s² (100G)
Termination	PCB
Construction	Plastic Wash tight
Unit Weight	Approx. 16g

Application Solar Power Systems: The ME106 relay is used to manage the flow of electricity in photovoltaic systems, ensuring safe and efficient energy conversion from sunlight to electricity. ​ Pre charging auxiliary relay for new energy vehicles: The ME106 relay provides appropriate voltage and current to the charging coil by controlling the power switch, and plays a role in protecting the battery and charging interface before the power is connected to the charger. Company Profile Zhejiang Meishuo Electric Technology Co., Ltd. is a dynamic and innovative enterprise in the field of electrical technology. Our corporate mission is to create value for our customers with a professional spirit. We focus on providing products with relays and solenoid valves as the core, and constantly provide corresponding solutions for our customers. Our industries cover smart homes, new energy, smart grids, automotive industry, and industrial control, striving to meet customer needs and provide customers with more valuable products. Production Workshop Display Cooperation Our customer-centric strategy ensures that we understand and meet the unique needs of our customers, providing them with tailored solutions and excellent services.
