Certification
VDE 40051494
UL E313266
TUV R50217035
CQC CQC11002059553
Overview

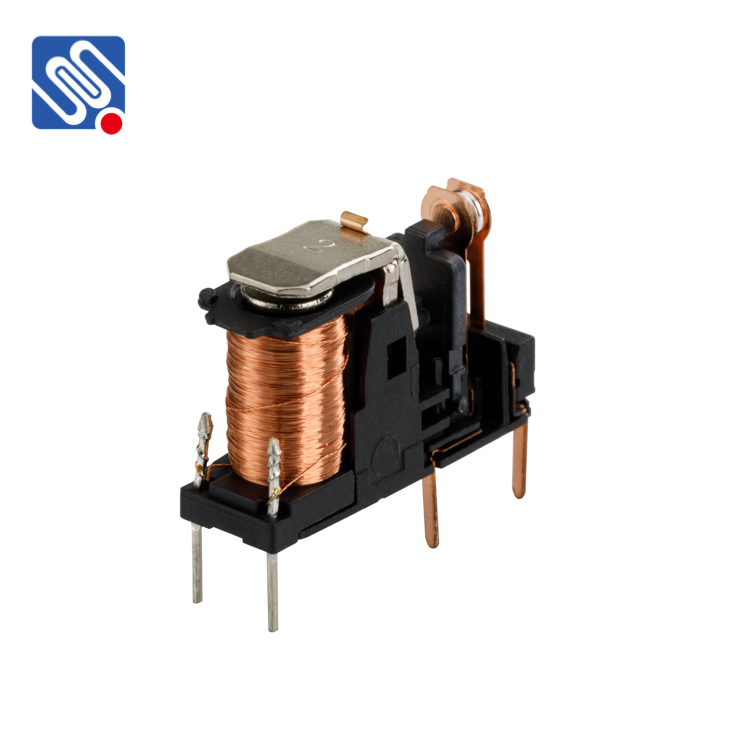

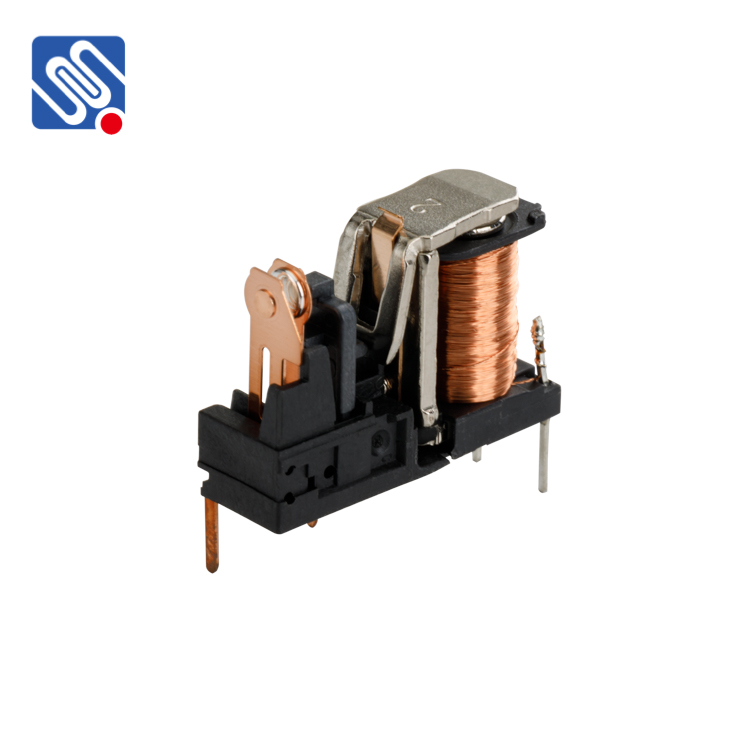

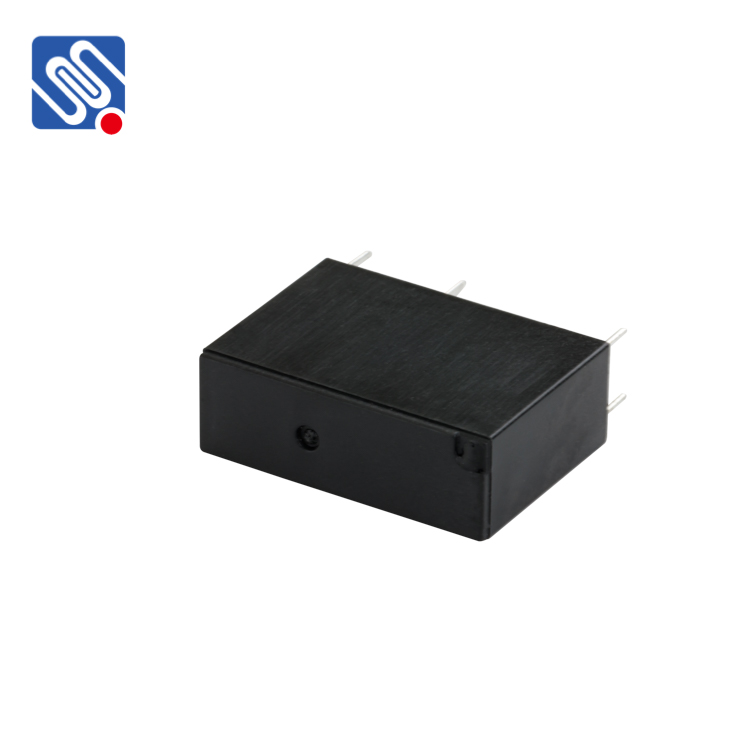

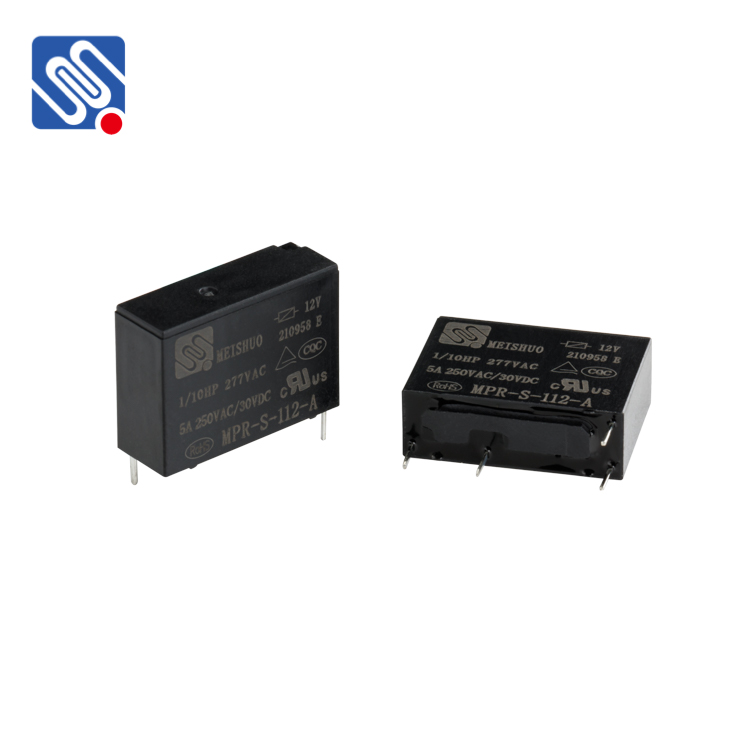

MPR relay is a high-performance relay with fast connection and disconnection response characteristics. The relay can be equipped with a socket to achieve fast replacement and maintenance. The performance parameters include input rated voltage 12VDC/24VDC. It is mainly used for power control and is suitable for high-density installation environments. It has broad application prospects in industrial automation, power control and other fields.
Parameters
| Contact Arrangement | 1A |
| Rated Load | 10A 250VAC |
| Max.Switching Current | 10A |
| Operate Time | ≤10ms |
| Release Time | ≤10ms |
| Coil Power | 0.2W |
| Construction | Wash tight |
| Unit Weight | Approx.3g |
Ordering Information
Model: MPR
Structure: Wash tight
Contact group: 1 pole
Coil voltage: 05,06,09,12,24 VDC
Contact form: 1A

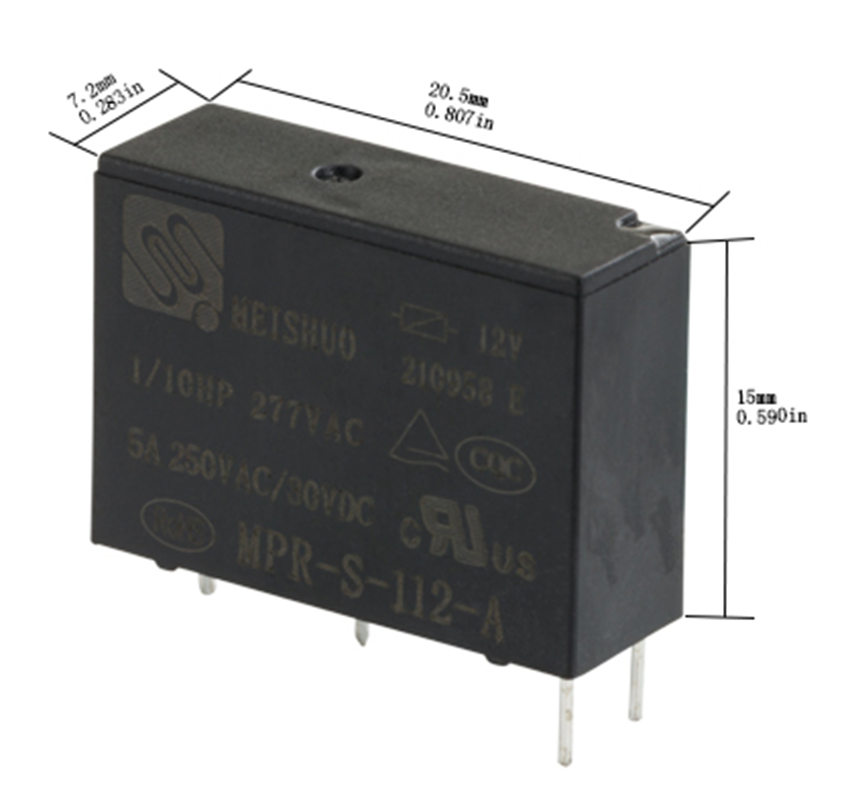

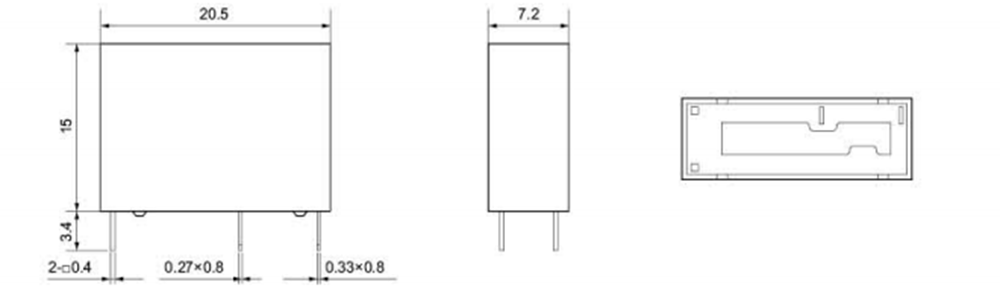

Outline Dimension L*W*H:20.5*7.2*15mm

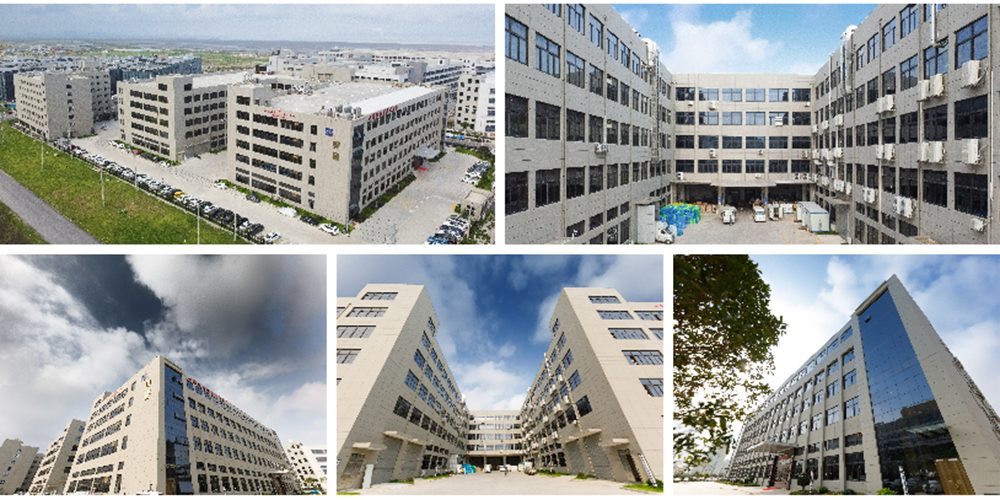

Company Introduction
Company Name: Zhejiang Meishuo Electric Technology Co.,Ltd
Established: 2007
Headquarters: Yueqing City, Wenzhou, Zhejiang Province, China
Main Business:Meishuo Technology is a high-tech enterprise specializing in the research, development, production, and sales of relays. We offer a wide range of relay products, including electromagnetic relays, latching relays, and automotive relays, which are widely used in power, transportation, automation, home appliances, and various other industries.
Support your OEM/ODM needs and provide one-stop customized solutions
