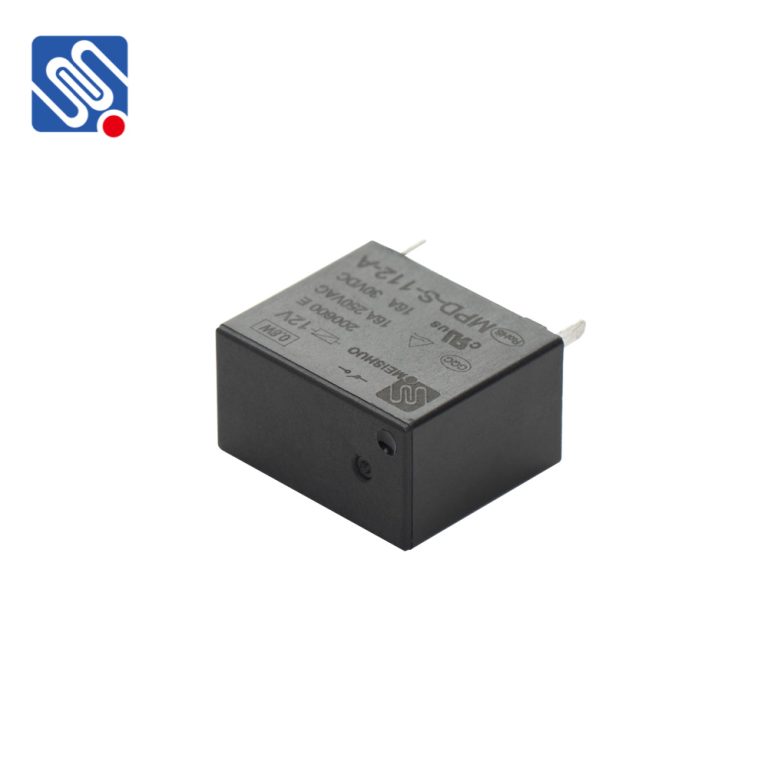

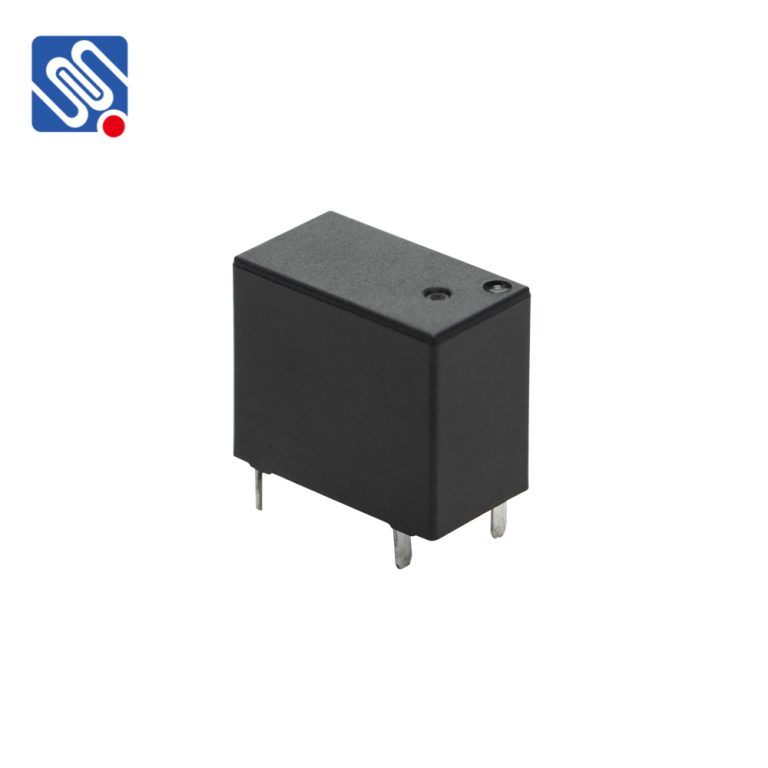

10A Standard 4Pin Relay

MPD relays have the characteristics of strong on/off capability and 10A load, and are usually used in household appliances such as air conditioners, washing machines, ovens, microwaves, and water heaters. They not only achieve intelligent and automated control, but also improve the safety performance of electrical appliances.

Contact Arrangement	1A
Rated Load	10A 250VAC
Max.Switching Current	10A
Operate Time	≤10ms
Release Time	≤5ms
Coil Power	0.45W
Construction	Wash tight
Unit Weight	Approx.6g

PCB Layout Naming Rules Model: MPD Structure: Wash tight Contact group: 1 pole Coil voltage: 05,06,09,12,24 VDC Contact form: 1A Application： • Household Appliances: Used in household appliances such as washing machines, electric kettles, air conditioners, etc. • Smart Home: Used in smart home systems such as smart lighting, smart door locks, etc. • New Energy: Used for circuit control and protection in solar energy systems, wind energy systems, etc. • Smart Grid: Used for monitoring, regulation, and protection of power systems. • Automotive Industry: Used for control and protection of automotive circuits such as headlights, horns, power windows, etc. • Industrial Control: Used for control of machinery and equipment on production lines. • Others: Applicable in fields such as aerospace, medical equipment, security systems, etc. Packing： Overview and Weight Information: 100pcs/plastic box, with a G.W. of 13 kg and a N.W. of 12 kg. • Internal Cushioning Materials: Inside each carton, abundant pearl cotton is meticulously placed to provide effective cushioning and protection for the products during transportation. • Structural Reinforcement: Thick cardboard is employed to reinforce the box structure, ensuring durability and shielding the contents from external impacts. • Partitioning Measures: Partition strips are strategically inserted to prevent shifting and secure the products in place, minimizing the risk of damage during handling and transit. Big brand OEM source, high-quality service Company Overview: Zhejiang Meishuo Electric Technology Co., Ltd. integrates relay production, processing, and sales. The company operates with a comprehensive and scientific quality management system. It is recognized in the industry for its stringent quality standards. Welcomes visitors and business partners from all sectors to visit, provide guidance, and engage in business negotiations. Design and Production Capabilities: Features a strong design team with extensive experience in relay design. Utilizes multiple advanced large-scale machines and fully automated production processes. Offers integrated molding and a complete production chain, ensuring streamlined and efficient service delivery. Emphasizes providing comprehensive one-stop printing services.
